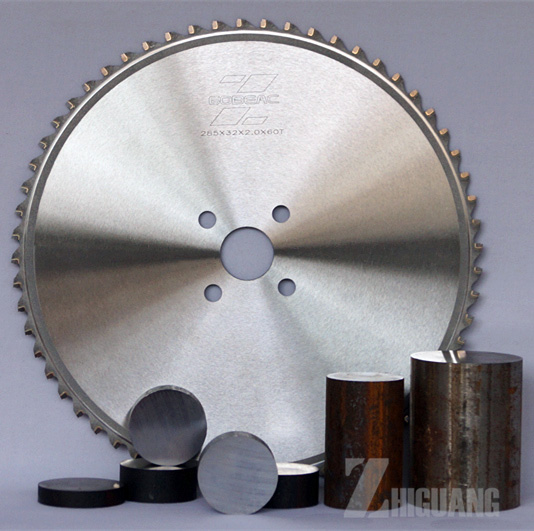

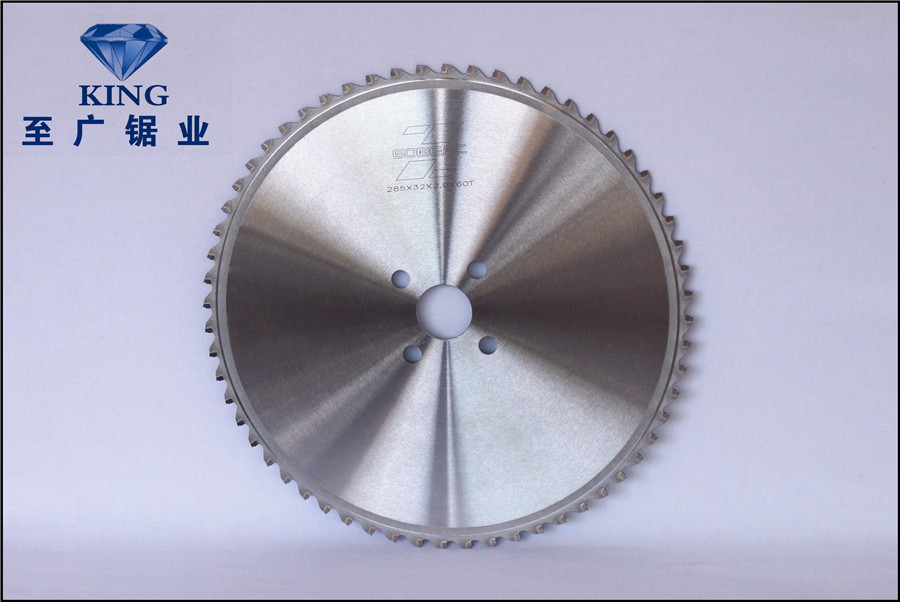

Cut steel specification
Used to cast iron, carton, carton steel, stainless steel rod, pipe
Used on professional machines with manipulator, oil cooled, 1000rpm
Smooth cutting surface, high efficiency, longer cutting life.
B(mm) | b(mm) | d(mm) | Z | α | T-type | Positioning hole | |
160 | 1.8 | 1.5 | 32 | 48 | 5 | S | 2/9/50 |
250 | 2.0 | 1.75 | 32 | 72 | 0 | S | 2/11/63 |
280 | 2.0 | 1.75 | 32 | 72 | 0 | S | 2/11/63 |
285 | 2.0 | 1.75 | 32 | 60 | 0 | S | 2/11/63 |
285 | 2.0 | 1.7 | 32 | 80 | 0 | S | 2/11/63 |
360 | 2.6 | 2.25 | 40 | 60 | 0 | S | 2/11/90 |
360 | 2.6 | 2.25 | 40 | 80 | 0 | S | 2/11/90 |
460 | 2.7 | 2.25 | 50 | 60 | 0 | S | 2/11/90 |
460 | 2.7 | 2.25 | 50 | 80 | 0 | S | 2//11/90 |
255 | 2.0 | 1.6 | 25.4 | 100 | 10 | NM | Iron cutting |
Notes:according to customer need to customize non-standard saw blade
